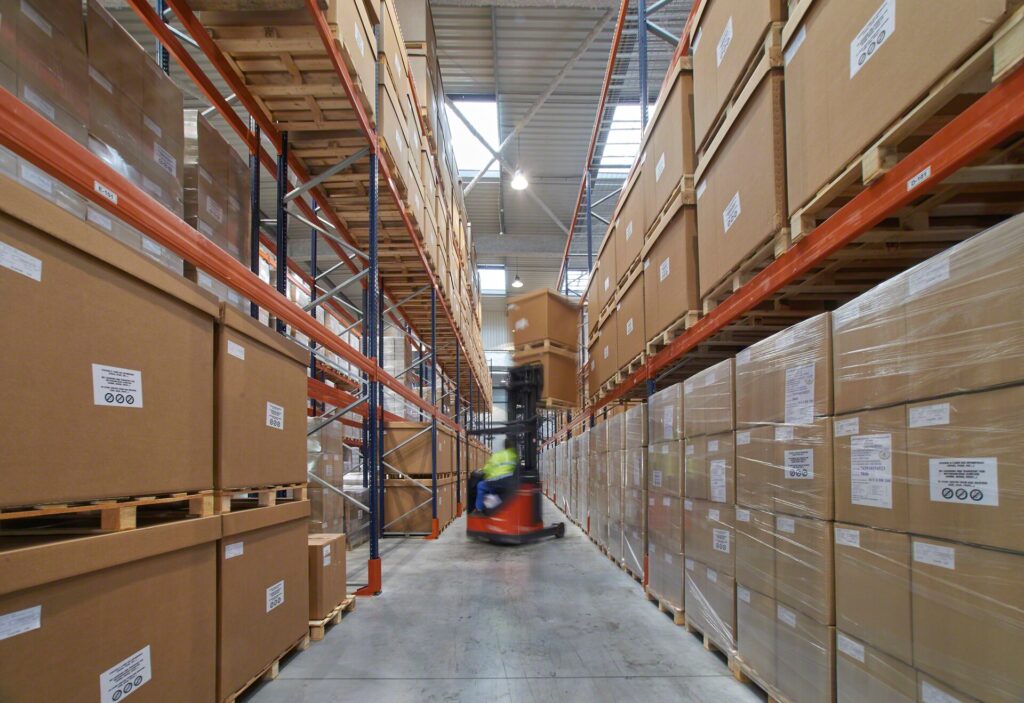

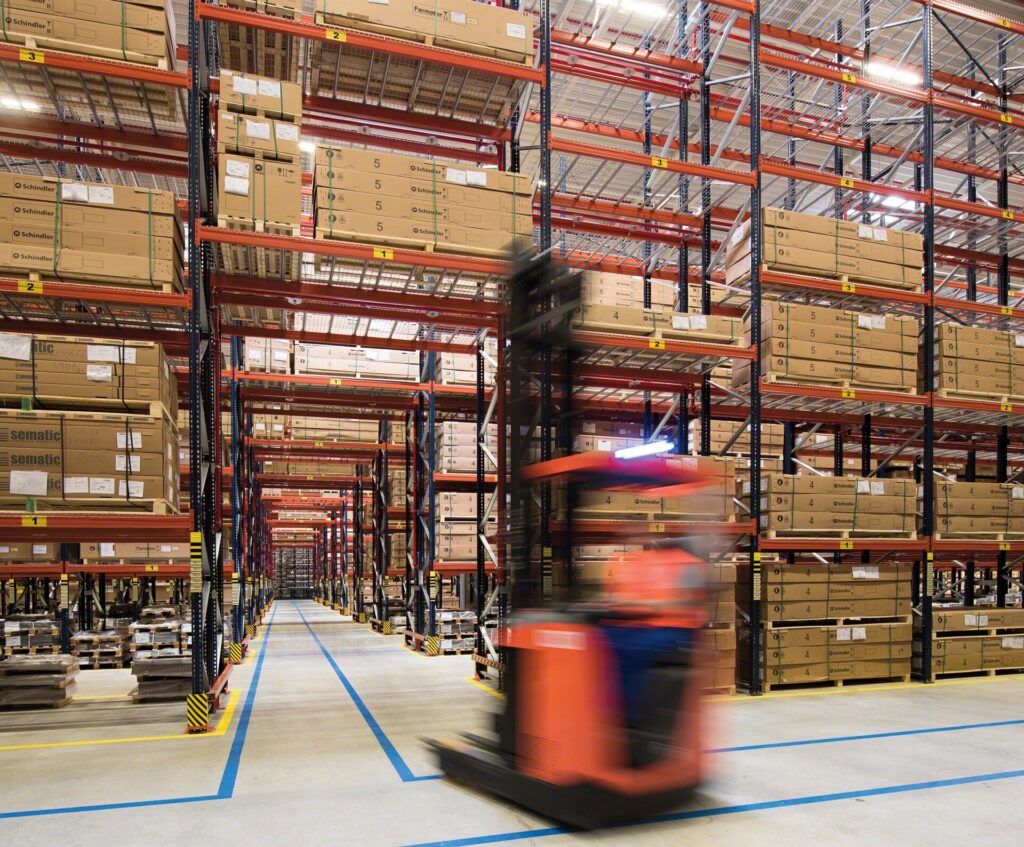

Selective Pallet Rack
Combining vertical frames with horizontal load beams, selective pallet rack provides total accessibility to the product. Easily the most popular racking system in use today, it provides versatility for warehouses that have a wide variety of product types. It is manufactured from high-strength steel
and other quality raw materials, which are certified to meet our stringent specifications. Interlake Mecalux roll-formed selective pallet rack is available with bolted or welded frame configurations. Beams are mounted to the frame and held in place with a piston lock connector. This allows the beams to be seated securely without risk of accidental disengagement and enables them to be rearranged simply and easily when necessary. A variety of accessories are also available to improve the performance of the selective rack. When a selective pallet rack system is designed for maximum throughput and storage capacity, the
resulting system is built to accomodate years of growth.
Advantages
- Immediate access to every load provides efficient use of floor space and
minimizes load/unload time. - Automatic beam-to-frame locking reduces installation time and
simplifies re-profiling. - Handling one pallet requires no need to move others.
- Increases load flexibility in terms of both weight and volume.
- Availability of a wide variety of sizes, gauges and accessories custom fit to
any application.
Frames
Standard frames are made up of two posts (columns), horizontal and diagonal bracing (struts), and footplates. Posts are available in a variety of gauges and lengths as well as configurations for seismic zones. Columns are braced along the vertical length to be more resistant to axial loading and to restrict separation and twisting of the column sections under load.
- The capacities shown are:
- Applicable for non-seismic use
only. - Shown in pounds (lbs) and for
product load plus dead load (dead
load = 2.0% of product load). - Only valid when used with Interlake
Mecalux published beam sizes.
