Cantilever Racking

Overview

MECO OMAHA manufacturesfive basic capacity series to fit yourstorage Single sided uprights can be converted to doubles when used with
requirements — from Series 1000 Medium Duty through the Series 5000 longer bases designed to accommodate placement of arms on both
Extra Heavy Duty.

Available in upright heights from 6′ to 20′ With 2′ through 10′ brace Widths (measured on center). Arms are completely adjustable on 3″ centers to accommodate an Infinite variety of Items. Straight arms are available in nine different lengths with or without lips. Heavy Duty and Extra Heavy
Duty arms are both available in seven lengths with or without lips. Inclined arms are available in seven lengths with or without lips. A wide range of storage base sizes allows custom designing of rack systems to your individual needs. Uprights are punched on both sides for versatility. They can be used single sided or double sided depending on the base used. Note that on arms must never be placed on the back side of a single—based upright.

MECO OMAHA CANTILEVER RACKS are modular within each basic capacity series so that additional arms, uprights and cross braces may be ordered at any time to add to your existing system. Different sized arms may be interchanged on racks to further tailor your racks to different uses. Standard and Heavy Duty arms (page 28) are designed for use on Series 3000, Series 4000 and Series 5000 uprights only. Series 1000 and Series 2000 components are not interchangeable with any other rack series.

Single sided uprights can be converted to doubles when used with longer bases designed to accommodate placement of arms on both sides. Upright capacities can be computed by multiplying the number of arms per upright by the individual arm capacities—NOT TO EXCEED TOTAL UPRIGHT CAPACITIES LISTED. Arm capacity is based on EVEN DISTRIBUTION OF LOAD. All racks are designed for quick assembly and come with complete instructions and hardware for installation.

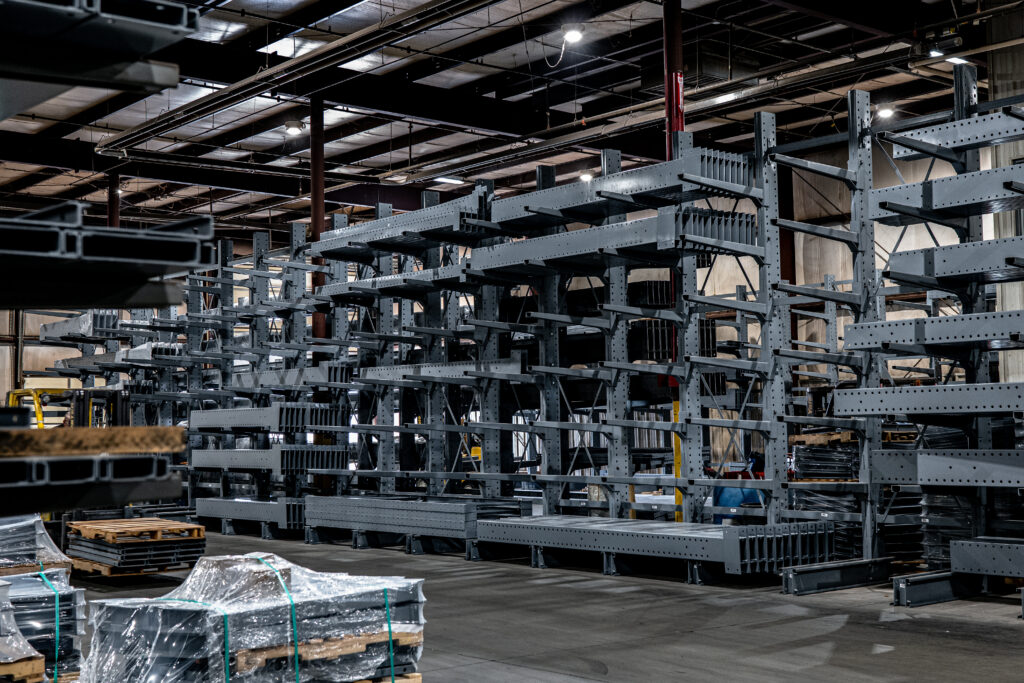

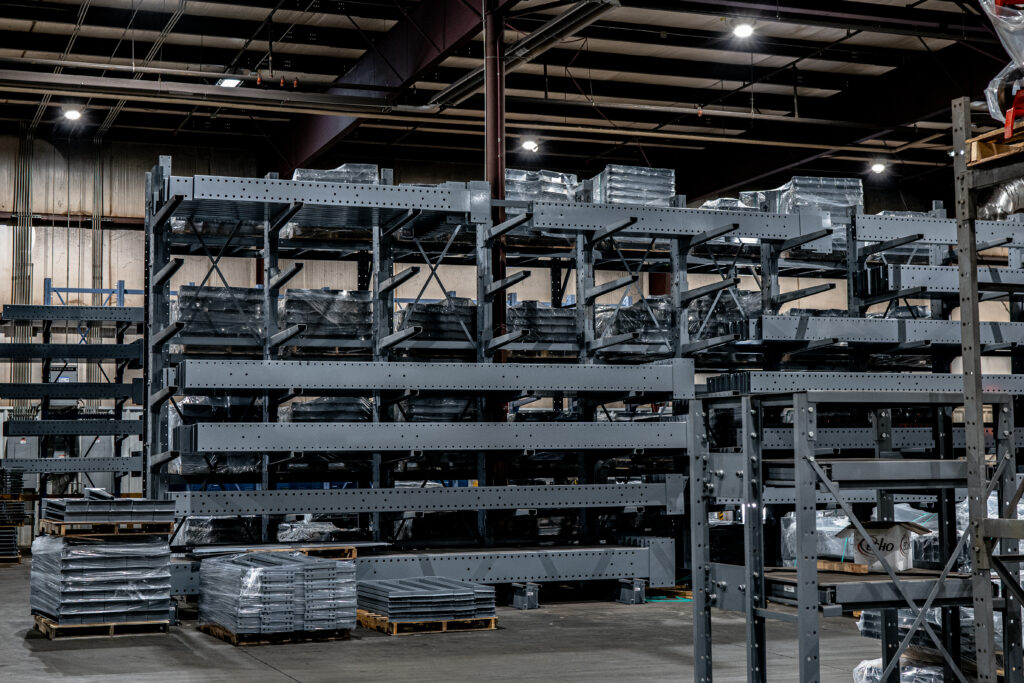

Completely adjustable MECO OMAHA CANTILEVER RACKS eliminate storage problems. Heavy duty steel construction permits storage of tubes, bars, structurals and other long heavy items that must be kept off the floor. Bases can be used for extra storage. Forkift easily loads off and on arms and bases. Fast, convenient handling of heavy, long unwieldy stock Instant accessibility to one piece or a fullload. For longer materials, simply add braces and uprights to fit your requirements.

Specially designed MECO OMAHA CANTILEVER RACK systems may be required to meet your needs. MECO OMAHA representatives will work with you to develop the most feasible and economical rack system for your special situation. Special labeling requirements can be met at a additional cost. Ask us to quote prices and specifications for rack systems not covered in the MECO OMAHA BUYER’S GUIDE.
